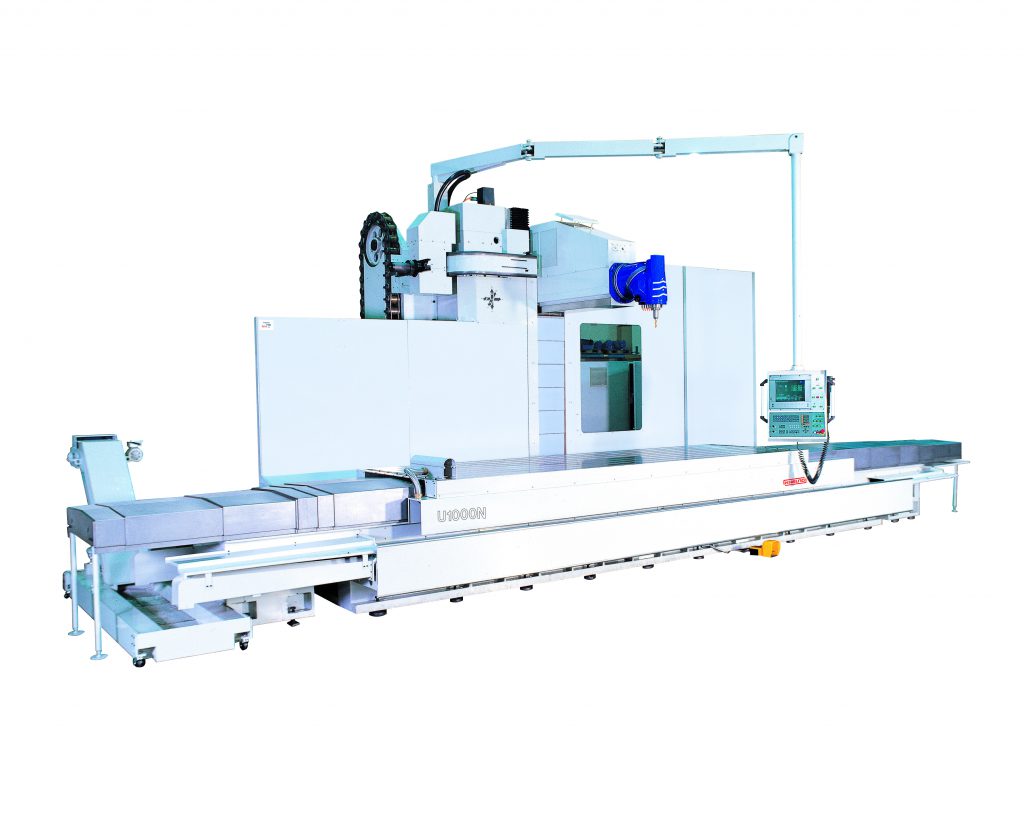

U1000 CNC Bed type milling machine

Call us to know the availability Get a quote


  • Controller: HEIDENHAIN iTNC 530, SIEMENS 840D, FANUC 31i
  • Table dimensions: 2500~5000 x 900~1050mm
  • X axis: 2100~5000mm
  • Y axis: 1000~1250mm
  • Z axis: 1050~2000mm
  • Feed: 5000mm
  • Rapid: XY12000, Z10000mm
  • Spindle power: 28/38kW


The U1000 is designed for the heavy machining of  a variety of different sized parts. It can support work pieces of up to 13,000kg and milling performance uses 42kw power  and 1636Nm of torque. For high accuracy, the cross Y-axis ball screw has an internal oil-cooling system. For the smooth movement of the cross Y-axis, there is a box way saddle with anti-friction material (turcite or biplast). To avoid “Ram drooping” of the 1250mm Y-axis, there is the combination of box way design, INA steel way on the column and INA roller shoes on the saddle. For the smooth movement of vertical Z-axis, there is the hydraulic cylinder weight balance with a French Olaer accumulator and anti-friction material (turcite or biplast). The LM ball screw support system with the ball screw vibration absorber allows for vibration-free running, noise reduction and no accuracy deformation. Together with the wide choice of heads (vertical, A2, A4 and orthogonal etc..) and available accessories (4th axis rotary table, sub angle table and special head change station etc..), this machine is both reliable and suitable for a variety of applications.

Other specs

  • TABLE:
    • Length (mm): 2500/3100/3600/4100/4500/5000
    • Width (mm): 900(1050)
    • T-slot/Width/Distance (mm): 6(7)/22H7/125
    • Max permissible load (kg): 8000~13000
    • Longitudinal (mm): 2100/2600/3100/3600/4100/4500/5000
    • Cross (mm): 1000/1250
    • Vertical (mm): 1050/1350/1600/2000
  • FEED:
    • Axis (mm/min): 5000
    • Rapid (mm/min): ~X3600 : 12000(X,Y), 10000(Z)
    • Rapid (mm/min): X4100~ : 16000(X), 12000(Y), 10000(Z)
    • Drive motor (Nm): ~X3600 : 27(X,Y,Z)
    • Drive motor (Nm): X4100 : 50(X), 27(Y,Z)
    • Drive motor (Nm): X4500~ : 70(X), 27(Y,Z)
    • Taper: ISO50
    • Speed (rpm): 4000 (2 step : 0~1000, 1001~4000) Programmable universal head available 2,5° x 2,5° to 0,001 x 0,001
    • Drive motor (kW): 28/38
  • WEIGHT (kg): 21000~35000
