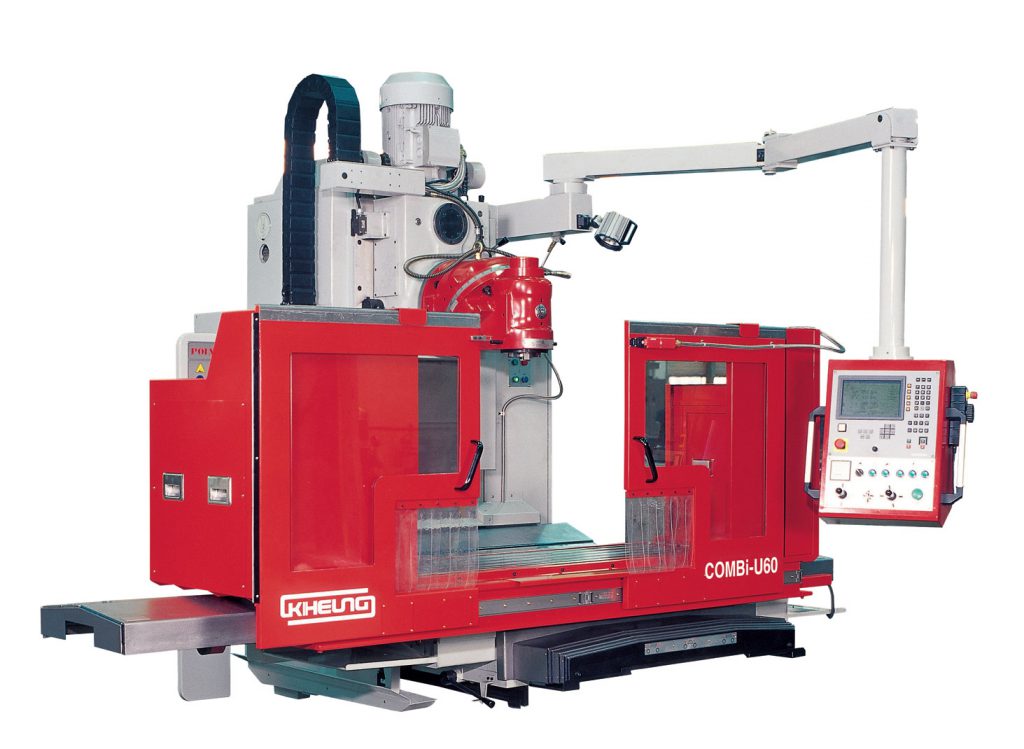

COMBI-U60 CNC Bed type universal machining center

• Controller: HEIDENHAIN TNC620, FANUC 0i, SIEMENS 828D
• Table dimensions: 2200 x 600mm
• X axis: 1600mm
• Y axis: 750mm
• Z axis: 700mm
• Spindle power: 11kW

With the Fanuc, Heidenhain and Siemens CNC, the COMBI-U60 can control the 3-axes simultaneously and it is designed for heavy machining of  medium to small sized parts. Operators can choose the 2 step high-low automatic gear change system with max. spindle speed of 3000rpm + max. power of 24kW, or the 12 step gear change system with max. spindle speed of 1600rpm + max. power of 11kW. The COMBI-U60 is constructed using professional assembly and hand scraping skills. The Kiheung`s unique Huron system consisting of up head and low head can be turned to any desired angle and vertical/ horizontal, combined angle milling is possible. The column is of a rugged box-type construction and its ground slide ways are wide to support and guide securely the spindle head. The bed is composed of a one-piece construction with double box for lubrication oil and coolant. The hardened and ground slide ways of the bed provide high stability to the saddle, and the saddle has a rigid box-type construction to cope with loads during heavy-duty cutting. It is supported by the wide slide ways of the bed to assure stable movement and the Biplast(anti-friction material) ensures the smooth movement of the axis.

• TABLE:
  • Surface (mm): 2200x600
  • T-slot/Width/Distance (mm): 5/20/80
  • Max permissible load (kg): 2000
• TRAVEL:
  • Longitudinal (mm): 1600
  • Cross (mm): 750
  • Vertical (mm): 700
  • Height from table to vertical spindle nose (mm): 50~750 15~715
  • Height from table to horizontal spindle nose (mm): 60~760 95~795
• FEED:
  • Axis (mm/min): 4000
  • Rapid (mm/min): 8000
  • motor (Nm): 12(Fanuc) 16(Heidenhain)
• SPINDLE:
  • Taper: ISO50
  • Speed (rpm): 40~1600 3000(0~525, 526~3000) Programmable universal head available 2,5° x 2,5° to 0,001 x 0,001
  • No. of spindle speeds (No.): 12 2
  • Drive motor (kw): 11 15/24
  • Distance from column to vertical spindle center (kw): 700 680
  • Distance from column to horizontal spindle center (kw): 710 75
• WEIGHT (kg): 7500
