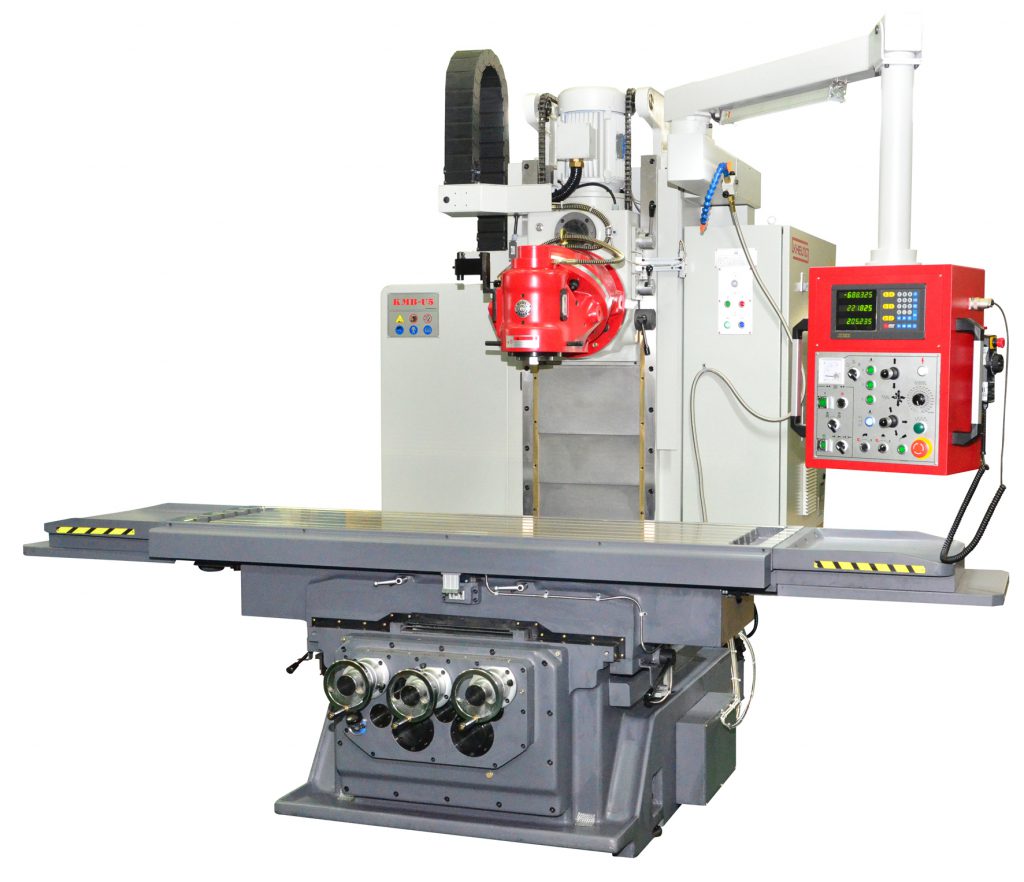

KMB-U5 Bed type milling machine

Call us to know the availability Get a quote
KMB-U5
Kiheung
KMB-U5

Specs

  • Controller: Universal milling machine
  • Table dimensions: 470~950 x 1700~3900mm
  • X axis: 1200~3200mm
  • Y axis: 600~1050
  • Z axis: 550~850mm
  • Spindle power: 7.5~15kW

Description

The KMB is constructed using professional assembly methods and hand scraping skills. Kiheung`s unique Huron system consists of up head and low head, can be turned to any desired angle and vertical/ horizontal combined angle milling is now possible. The column is of a rugged, box-type construction and its ground slide ways are built wide to support and guide the spindle head securely . (The column of KMB-U6 and KMB-U7 is hardened and ground), the bed is a one-piece construction with a double box of lubrication oil and coolant. The hardened and ground slide ways of the bed provide high stability to the saddle, and the saddle has a rigid box-type construction to deal with loads during heavy-duty cutting. It is supported by the wide slide ways of the bed to assure stable movement and the Biplast (anti-friction material) ensures the smooth movement of the axis. Furthermore, an AC servo motor is equipped with an infinitely variable feed movement, so feed change using a dial on the panel makes for easier operation and choosing of the appropriate feed speed.

Other specs

  • TABLE:
    • Length (mm): 2000
    • Width (mm): 530
    • T-slot/Width/Distance (mm): 5/20/80
    • Max permissible load (kg): 2000
  • TRAVEL:
    • X axis (mm): 1400
    • Y axis (mm): 600
    • Z axis (mm): 650
    • Height from table to vertical spindle nose (mm): 40 - 690
    • Height from table to horizontal spindle nose (mm): 50 - 700
  • SPEED:
    • Rapid (mm/min): 5000 (X,Y) / 2500 (Z)
    • Feed (mm/min): 2000 (X,Y) / 1000 (Z)
  • SPINDLE:
    • Taper: ISO50
    • Speed (rpm): 40-1720(50Hz)
    • Speed (rpm): 40-1620(60Hz) Universal head available 1° x 1° to 0,001 x 0,001
    • No. of spindle speeds (No.): 12
    • Drive motor (kw): 7.5
  • FLOOR SPACE:
    • Length (mm): 4660
    • Width (mm): 2525
    • Height (mm): 2700
  • WEIGHT (kg): 7000
