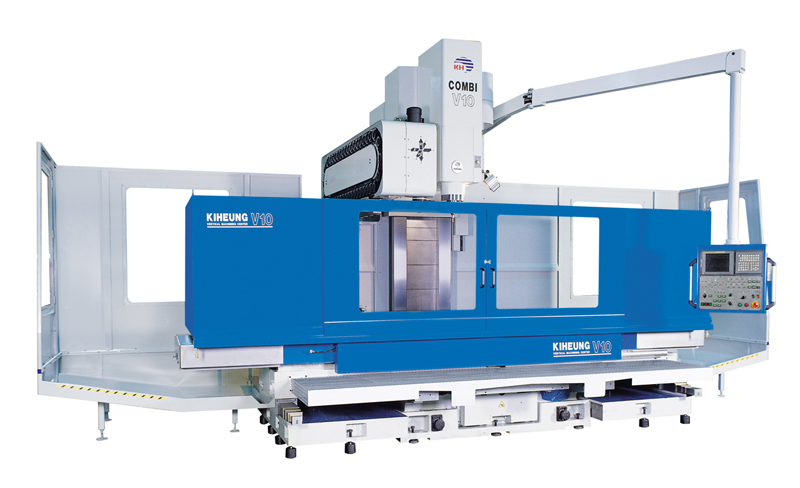

COMBI-V10 CNC Bed type vertical machining center

Call us to know the availability Get a quote


  • Controller: HEIDENHAIN iTNC 530, SIEMENS840D, FANUC 31i
  • Table dimensions: 2660,3140,3600 x 1100mm
  • X axis: 2300,2800,3200mm
  • Y axis: 1050mm
  • Z axis: 950,1200mm
  • Feed: 5000mm
  • Rapid: 12000mm
  • Spindle power: 22/38kW


With the Fanuc, Heidenhain and Siemens CNC, the vertical machining center COMBI-V10 can control the 3-axes simultaneously and it is designed for high speed machining. It’s milling performance uses power of 28kW and max. spindle speed of 6000rpm with the 2 step high-low automatic gear change system. The COMBI-V10 is constructed using professional assembly and hand scraping skills. The column is of a rugged box-type construction and its ground slide ways are wide to support and guide securely the spindle head. The bed is composed of a one piece construction with double box for lubrication oil and coolant. The hardened and ground slide ways of the bed provide high stability to the saddle, the saddle has a rigid box-type construction to cope with loads during heavy-duty cutting. It is supported by the wide slide ways of the bed to assure stable movement and the Biplast(anti-friction material) ensures the smooth movement of the axis.

Other specs

  • TABLE:
    • Surface (mm): 2660/3140/3600x1100
    • T-slot/Width/Distance (mm): 8/22/125
    • Max permissible load (kg): 4000
    • Longitudinal (mm): 2300/2800/3200
    • Cross (mm): 1050
    • Vertical (mm): 850/1100
    • Height from table to spindle nose (mm): 100~900/100~1200
  • FEED:
    • Axis (mm/min): 5000
    • Rapid (mm/min): 12000
    • motor (Nm): 22/30(X), 40(Y), 30(Z)
    • Taper: ISO50
    • Speed (rpm): 6000(1~1500, 1501~6000)Programmable universal head available 2,5° x 2,5° to 0,001 x 0,001
    • Drive motor (kw): 22/28
    • Distance from column to spindle center (mm): 1000
  • WEIGHT (kg): 21000/23500/25500
